| MOQ: | 10 pieces |
| Price: | CN¥22.53-39.03/pieces |

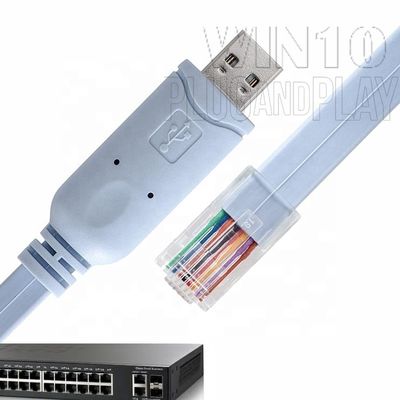

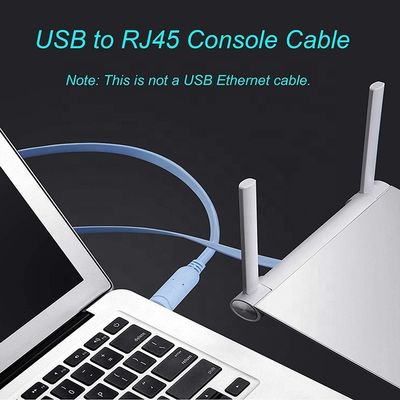

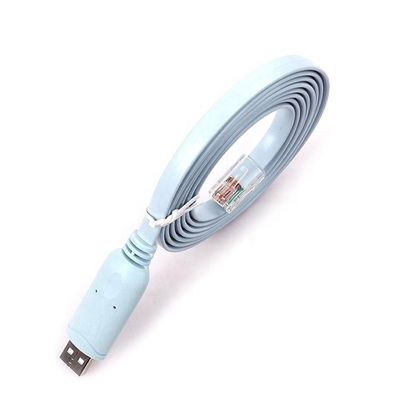

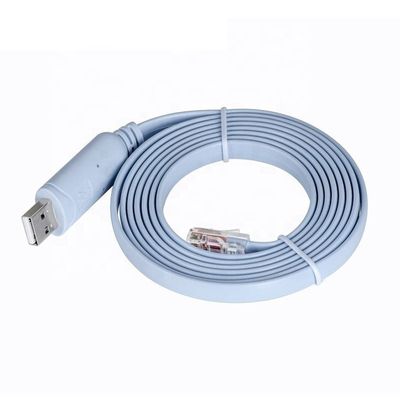

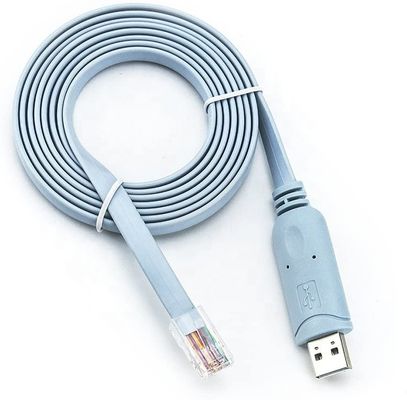

| Product name | console cable |
| Cable type | USB console cable |
| Chipset | FTDI FT232RL+ZT213 |
| Function | serial console |
| Connector 1 | USB2.0 A male |
| Connector 2 | RJ45 8P8C |
| Length | 1.8m |
| Color | blue |
| Application | router modem,switch for Cisco |
| OEM ODM | accept |
• Connectors:
1 x USB 2.0 Type-A male
1 x serial RS-232 RJ45 male
• Chipset: FTDI FT232RL+ZT213

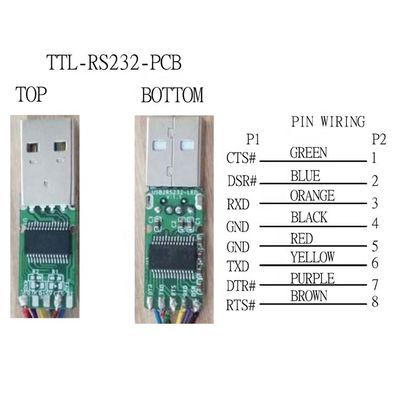

• Signals: CTS(1), DSR(2), RXD(3), GND(4), GND(5), TXD(6), DTR(7), RTS(8)
• Compatible with USB 3.0, USB 2.0, and USB 1.1 full speed 12 Mbps
• Data transfer rate up to 230.4 Kb/s
• Cable length: 1.8 m
• Suitable for various compatible routers, switch
System requirements
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 2.6
• PC or laptop with a free USB Type-A port
Q1.Is the original RS232 chip for the manufacture of console cable ?
A1: Yes, the chip RS232 was imported from UK FTDI. It's the orginal type to confirm the good quality console cable.
Q2.Did the cable can be worked with plug and play ?
A2: Yes, it's the console cable with plug and play. The upgrated USB to RJ45 8P8C console cable needn't the driver to install.
When you connector the computer and router console, the cable will install the driver automatically.
Q3: Is the console cable suitable for WIN7 , WIN8, WIN10, XP,LUNIX system ?
A3: Yes. It's the console cable with high compatibilty for WIN7, 8, 10,XP.
Answer:
I am using it on Juniper EX and MX platforms. Not sure about Fortigate, but it would be fine with any device that has an RS-232 console port.
|
|
